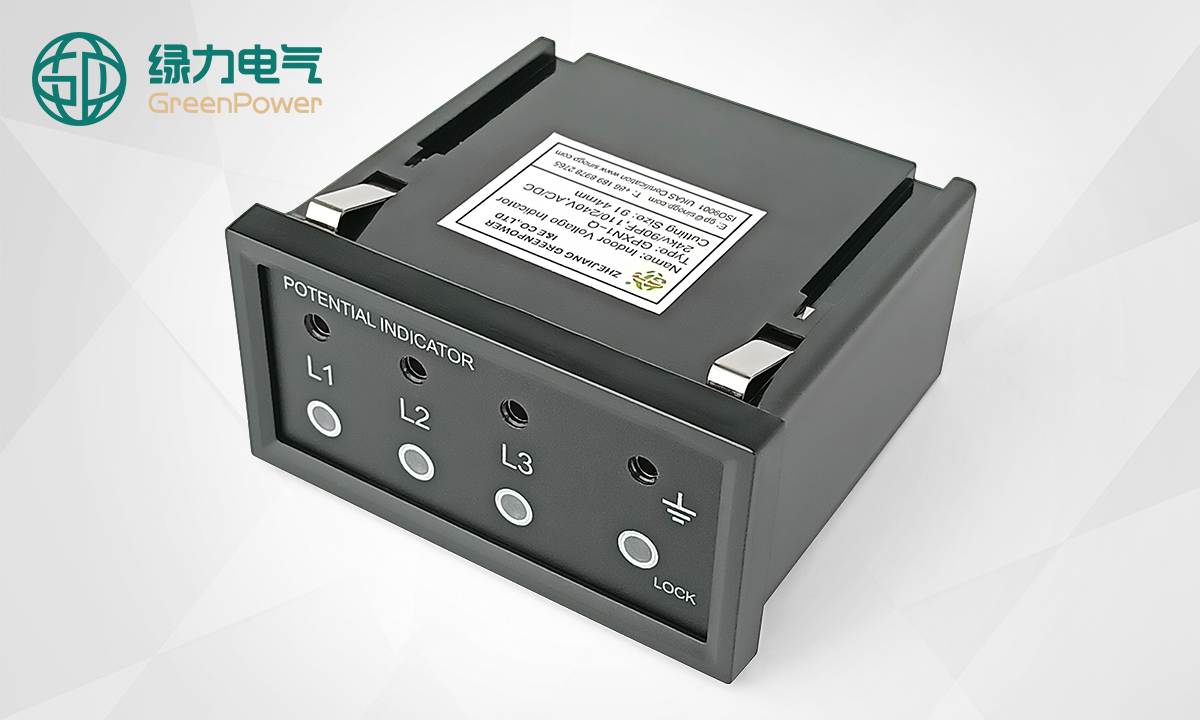

Voltage Indicator

The voltage presence indicating system is comprised of voltage indicator and high voltage insulator to indicate electriferous status of high voltage circuitry. The voltage indicator with interlocking function can interlock high voltage electrical equipment to prevent any dangerours operation entering into the electriferous spacing.

Rated frequency: 50Hz or 60Hz

Ambient temperature range: -25℃ to +55℃

Protection class: IP54

Power frequency withstand voltage 2kV/1min

Threshold voltage 15% to 40% Un

Mated with the cable containing surge voltage protector and low capacitance insulator to have a more safely testing voltage.

It can do the power frequency withstand voltage test with electrical equipment.

Utilize bright and long-life LED to indicate.

The capacitance of the auxiliary contact is 7A, 250 V AC or 30 VDC.

Easy for installation and maintenance.
